Laser Protective Goggles – Protect® ONTO-K0275

• K0275-ONTO Laser Protection eyewear Diode-Nd:YAG (800-1064 nm), Faser (1060 – 1080 nm), Nd:YAG (1064 nm), Alexandrite (755 nm)
• The new PROTECT® ONT 0275 series Laser goggles are lightweight laser protection eyewear made from special plastics; they are a perfect solution to wear over prescription glasses and the design offers a large field of vision. The temples can be adjusted individually in length and angle and the soft rubberized face foam provides the wearer with enhanced comfort.
• The Laser Safety Filter type: BVP-K0275 is suitable in particular for UV and Nd:Yag (1064nm) lasers used in laser cleaning. The laser safety filter consists of a light green coloured polycarbonate lens, and offers visible light transmission (VLT) of more than 30%. The laser safety filter is CE certified in accordance with the requirements of EN207.
• Filter details:- Special plastic Protection filter BVP-K0275
  – Filter colour: green
  – Visible Light Transmission (VLT): >30%

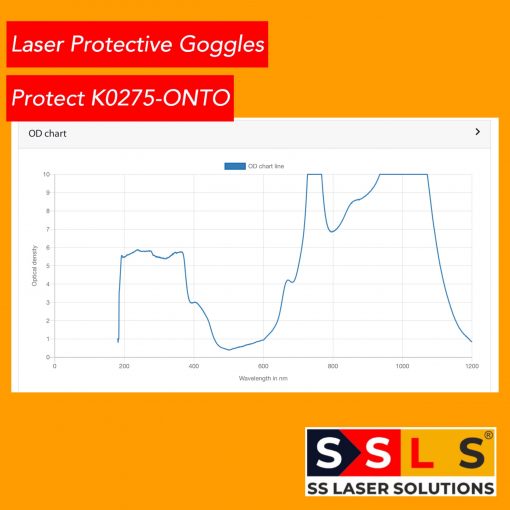

Certified protection specifications for EN 207
Wavelengths Protection levels
180-315 D LB10 + IR LB5 + M LB6Y (OD10+)
>315-380 D LB6 + IR LB8 + M LB7 (OD8+)
>380-436 DIRM LB6 (OD6+)
437-448 DIRM LB4 (OD4+)
449-462 DIRM LB2 (OD2+)
463-489 DIRM LB1 (OD1+)
624-650 DIRM LB1 (OD1+)
651-699 DIRM LB2 (OD2+)
700-719 DIRM LB4 (OD4+)
720-722 DIRM LB6 (OD6+)
723-729 D LB6 + IRM LB8 (OD8+)
730-765 D LB6 + IRM LB9 (OD9+)
>765-769 D LB6 + IRM LB8 (OD8+)
>769-820 DIRM LB5 (OD5+)
>820-920 DIRM LB6 (OD6+)
910-1075 D LB6 + IRM LB8 (OD8+)
>920-1065 D LB6 + IRM LB9 (OD9+)
1076-1085 DIRM LB6 (OD6+)
1086-1106 DIRM LB4 (OD4+)
1107-1138 DIRM LB2 (OD2+)
1139-1167 DIRM LB1 (OD1+)
5165-11500 DI LB4 + R LB3Y (OD4+)
PF CE
