Laser Welding Nozzles – (M16 )

M16 Laser welding nozzles

• AS-08 – Can be used with 0.8 mm wire
• AS-10 – Can be used with 0.8 / 1.0 mm wire *
• AS-12 – Can be used with 0.8 / 1.0 / 1.2 mm wire *
• A  / M-16A
• AS-12D – Double wire feeding nozzle for 1.2+1.2 mm wire
• AS-16D – Double wire feeding nozzle for 1.6+1.6 mm wire
• AS-20D – Double wire feeding nozzle for 2.0+2.0 mm wire
• BS-16 / FSA16 – Can be used with 0.8 / 1.0 / 1.2 / 1.6 mm wire *
• BS-20
• 16B / B
• C – Wire free welding nozzle
• CS-16 Wire free welding nozzle
• CS-08 Wire free welding nozzle
• CS-10 Wire free welding nozzle
• CS-12 Wire free welding nozzle
• CT-15 / Cutting Nozzle
• DS-20
• DS-10
• DS-16
• ES-08 – Can be used with 0.8  mm wire *
• ES-10 – Can be used with 0.8 / 1.0 mm wire *
• ES-12 – Can be used with 0.8 / 1.0 / 1.2 mm wire *

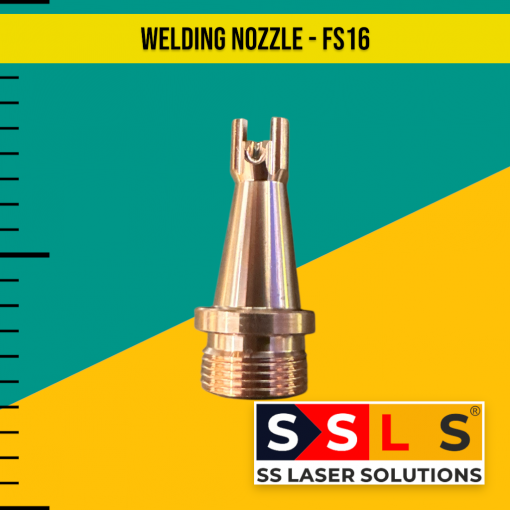

• FS-16 – Can be used with 0.8 / 1.0 / 1.2 / 1.6 mm wire *

* Even though bigger channels can feed smaller diameter wires, we always advise to use nozzles specific to the wire diameter. If nozzle diameter is too small than wire channel, centering the wire can be problematic.
