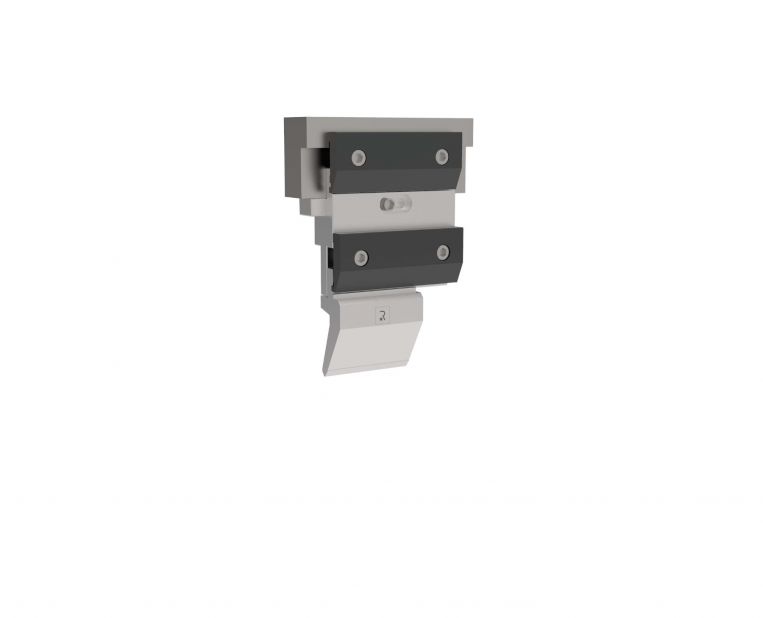

Manual Upper fast clamping system with front clamp for R1 tools, length 150 mm. Max. Load 1000 kN/m
*Without crowning wedge
EASY CLAMP is the simplest system and it’s considered standard all over the world. Intermediates vary a lot ranging from 100mm (3.94”) to 150mm (5.90”). They may also have 2 different bending axis: Z1 at 7mm (0.28”) and Z2 at 20mm (0.79”) from the tang. Each intermediate can be used with manual clamps (with screws) and fast clamps (with lever).
Every clamp type is also available with ground clamping surface or with polyurethane insert to clamp better segmented punches. EASY CLAMP can have fix height with +/- 0.01mm tolerance or it can be equipped with a crowning wedge. By releasing the central screw and moving it to the left or to the right, crowning wedge is moved and intermediate height adjusted.
