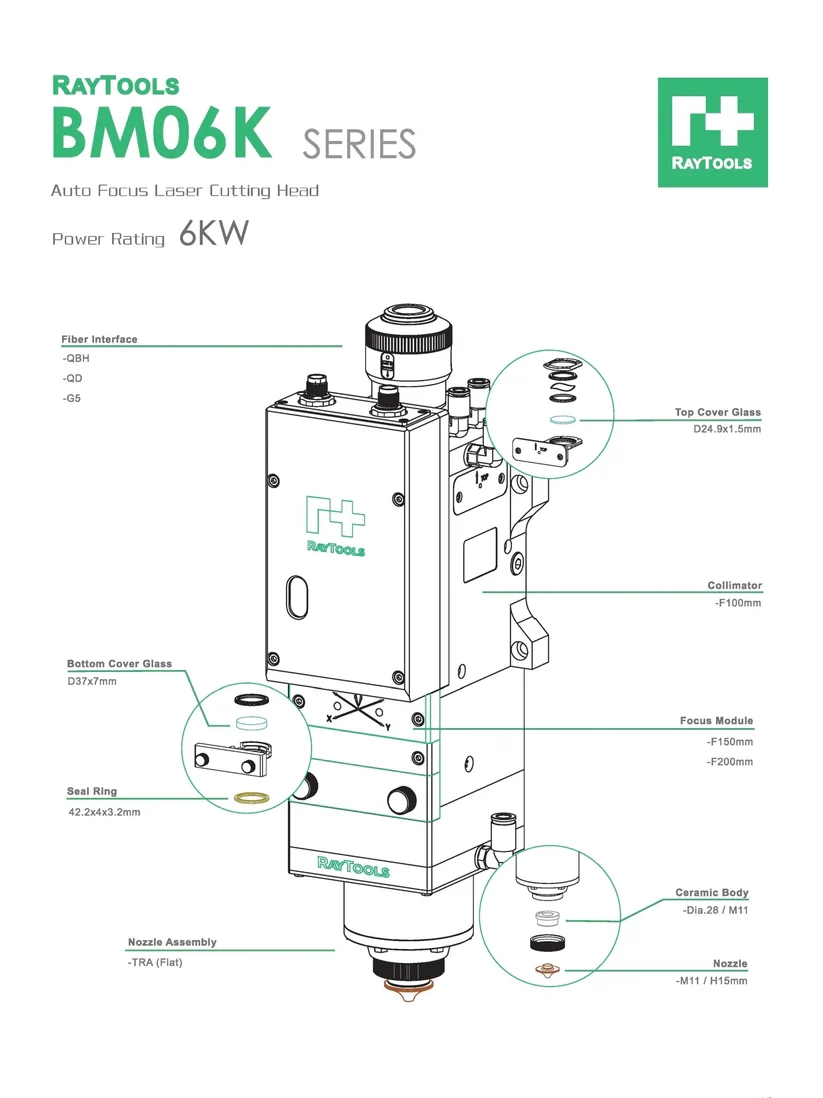

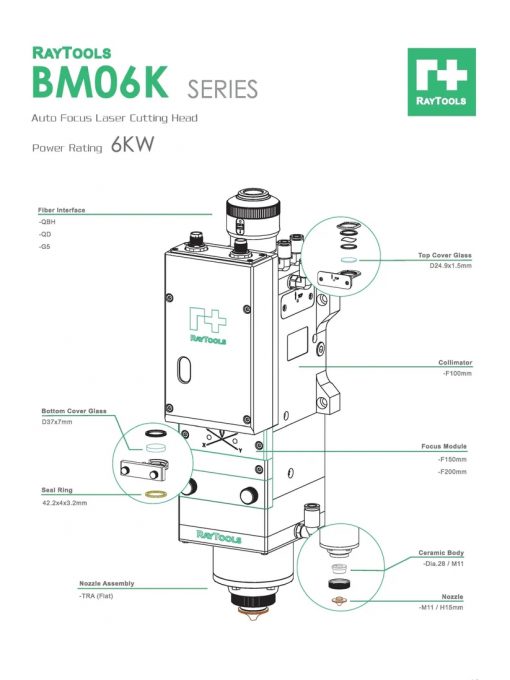

Raytools BM06K Autofocus Laser Cutting Head

• BM06K Auto Focus Laser Cuttng Head, QBH, 100, 200, 6000W
• Full set Including signal cables, drive
• 1 set

This cooling system is designed for both the collimation and focus modules, as well as the nozzle, which significantly enhances protection for the nozzle and ceramic parts, thereby extending their lifespan.

The unit includes four cover glasses that substantially reduce contamination risks during the replacement of the fibre and cover glass, prolonging the life of both the collimation and focus lenses.

It features an auto-focus mechanism that adjusts the collimation lens, enabling faster operation and a wider auto-focus range.

The temperature of the lower cover glass can be monitored in real-time via desktop computer, with an alarm feature for overheating to safeguard the optical path system effectively.

The integrated design ensures airtight sealing. The improved fibre interfaces (QBH, QD, G5) enhance compatibility with various lasers and prevent issues related to leaks and rust.

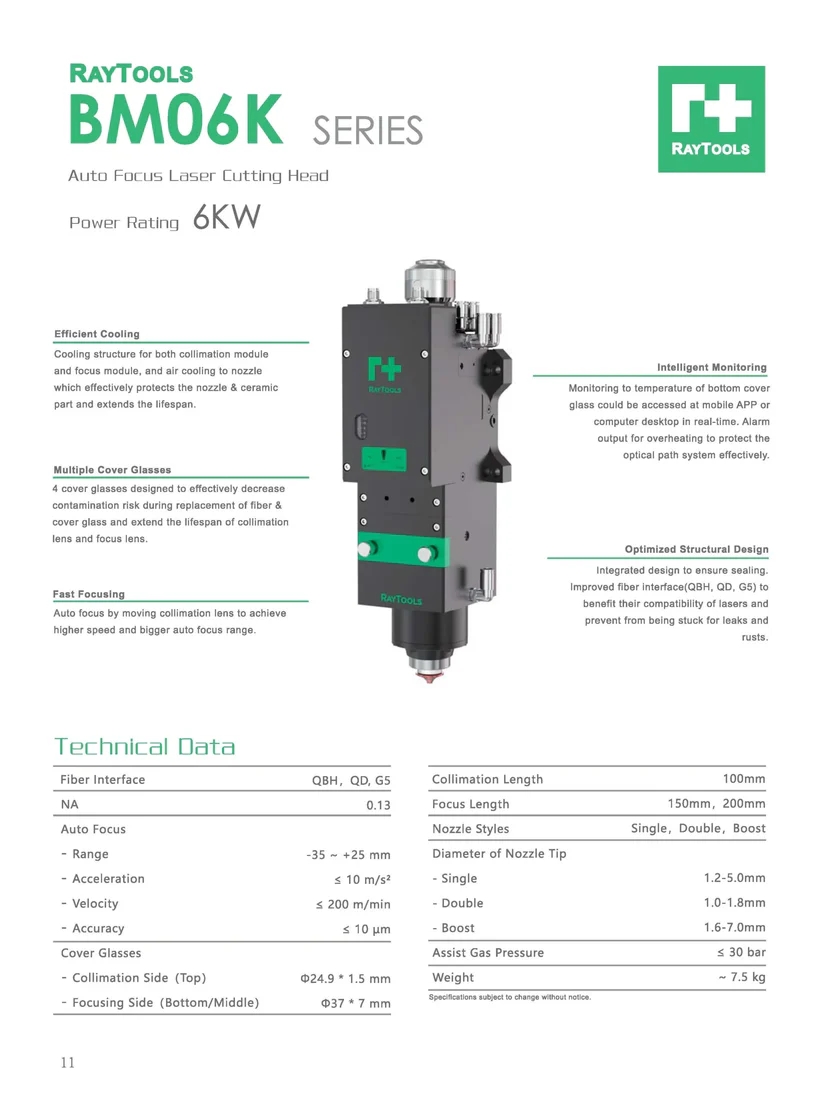

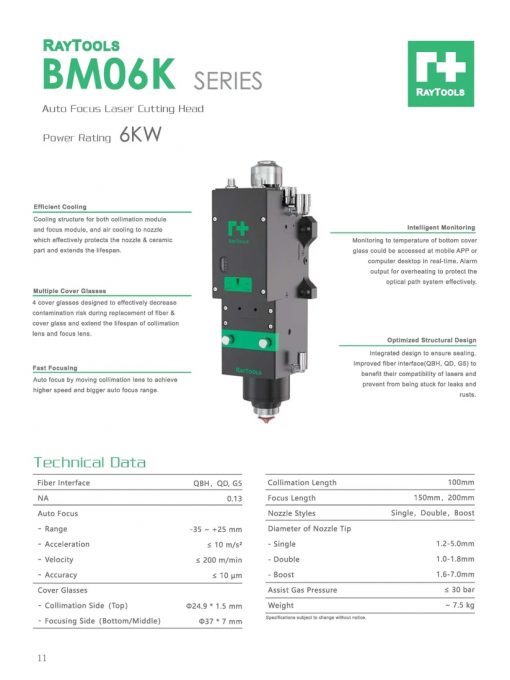

Fibre Interface	QBH, QD, G5
Auto Focus:	Yes
Range	-35 ~ +25
Acceleration	≤ 10 m/s2
Velocity	≤ 200 m/min
Accuracy	≤ 10um
Protective Lens Dims
Collimation (Top)	dia 24.9*1.5mm
Focusing (Middle/Bottom	dia 37*7mm
Collimation Length	100mm
Focus Length	100mm, 200mm
Assist Gas Pressure	≤ 30 bar
Weight
7.5kg
