WROL HYD POWER
Upper fast clamping system, hydraulic, in C45 hardened for R2 tools, length from 1550 to 4100 mm. max load 1800 kN/m head thrust and shoulder thrust
- Description
- Features
- Attachments
Upper fast clamping system, hydraulic, in 42CrMo4 for R2 tools, length from 1020 to 6120 mm. max load 1800 kN/m head thrust and 2500 kN/m shoulder thrust

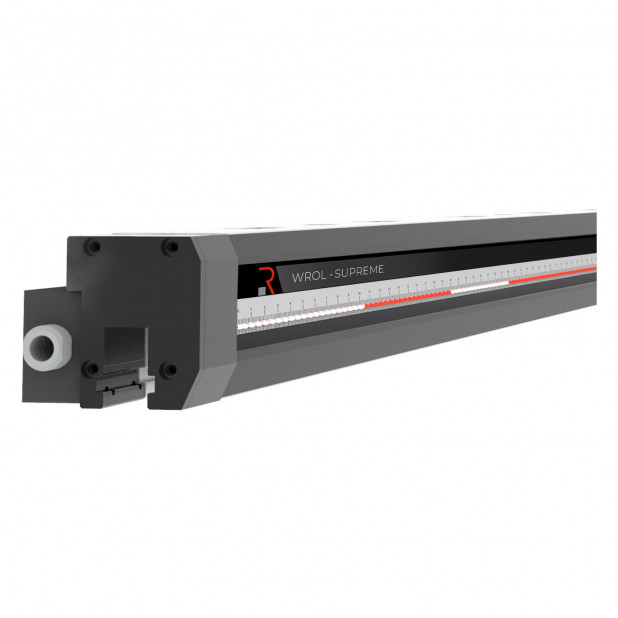

WROL clamping systems represent an evolution of R2 New Standard. They look like long beams in one solid piece with a new structural and aesthetic design. Every WROL undergoes heating treatment to give proper hardness to the contact surfaces of the system with tooling. According to the necessary capacity you can choose among Power, Supreme and Extreme line. Several lengths are available from 1020mm (3.608 ft) to 6120mm (20.131 ft) for any press brake. You can also retrofit a press brake with R1 type tang to R2 New Standard and gain some daylight thanks to the limited working height of WROL being only 80mm 3.15”. In this version you can choose between AWP version (fix) and AWPC with crowning wedges.
On request, the WROL system is available with R1 upper system and R1 with crowning wedge (with extra charge).
