AROL PN POWER
Upper fast clamping system, pneumatic, in C45 hardened for R5 (American) tools, length from 1219.2 to 6096 mm. max load 1500 kN/m shoulder thrust.
- Description
- Features
- Attachments
Upper fast clamping system, pneumatic, in 42CrMo4 hardened for R5 (American) tools, length from 1219.2 to 6096 mm. max load 2500 kN/m shoulder thrust.

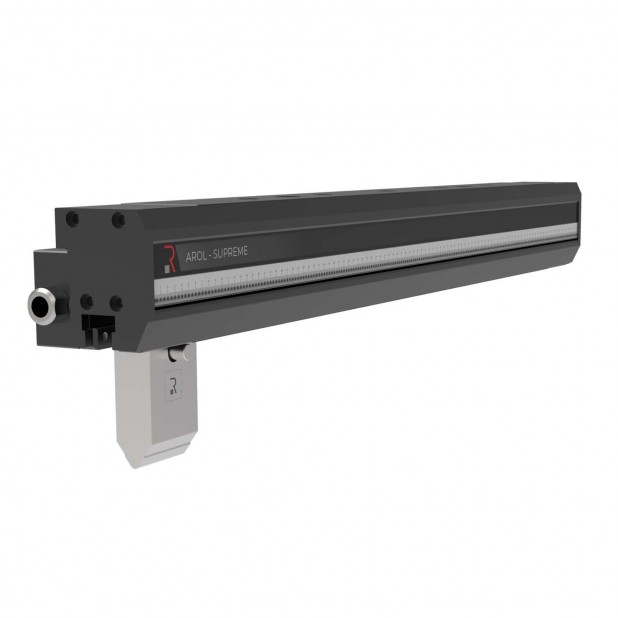

AROL systems represent an evolution of American clamping systems. They look like long beams in one solid piece with a new structural and aesthetic design. Every AROL undergoes heating treatment to give proper hardness to the contact surfaces of the system with tooling. According to the necessary capacity you can choose among Power, Supreme and Extreme line. Several lengths are available from 1219.2mm (3.608 ft) to 6096mm (20.131 ft) for any press brake. You can also retrofit a press brake with R1 type tang to clamp American type tools and gain some daylight thanks to the limited working height of AROL being only 80mm 3.15”. In this version you can choose between AWP version (fix) and AWPC with crowning wedges.
The appearance has been improved by reducing the overall dimensions with ergonomic advantages too and by mounting LED bars for the tool positioning or for on/off signal.
