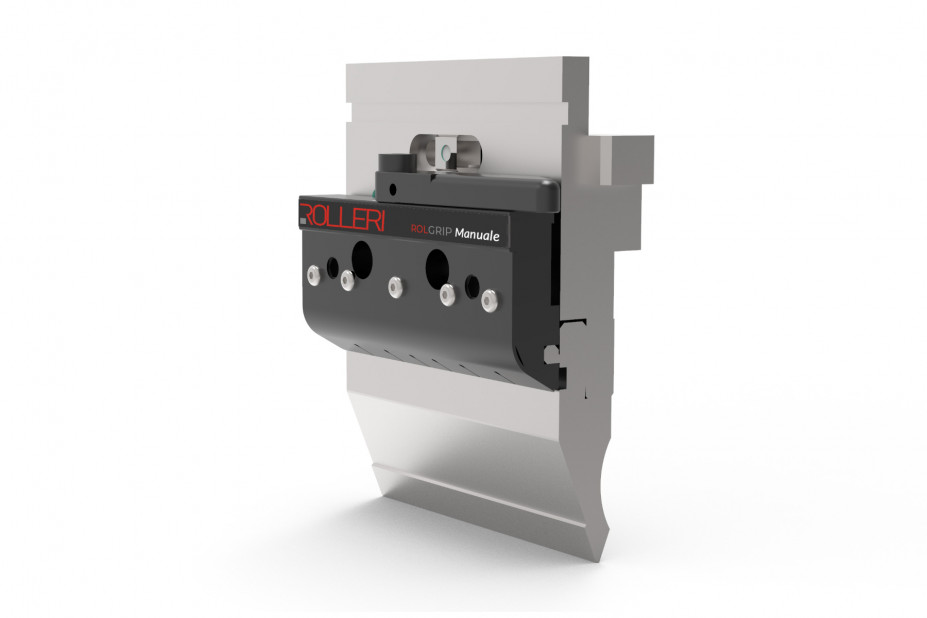

Manual clamping for upper tools by means of a comfortable ergonomic lever.
Frontal introduction and extraction of the European-type standard tool and automatic return at the stop. Ability to mount the tool inverted, from the front of the press using the manual bracket 11008 complete with screws and springs (not included in the supply) tightening with screws.
Manual clamping for upper tools by means of a comfortable ergonomic lever. Compatible with all press brakes with Amada-Promecam type tang.
UPPER TOOLS
Manual clamping for upper tools by means of a comfortable ergonomic lever.
VERTICAL TOOL CHANGE
Manual clamping for punches with ergonomic lever. Vertical tool change for standard European type punches and automatic alignment.
TECHNICAL INFORMATION

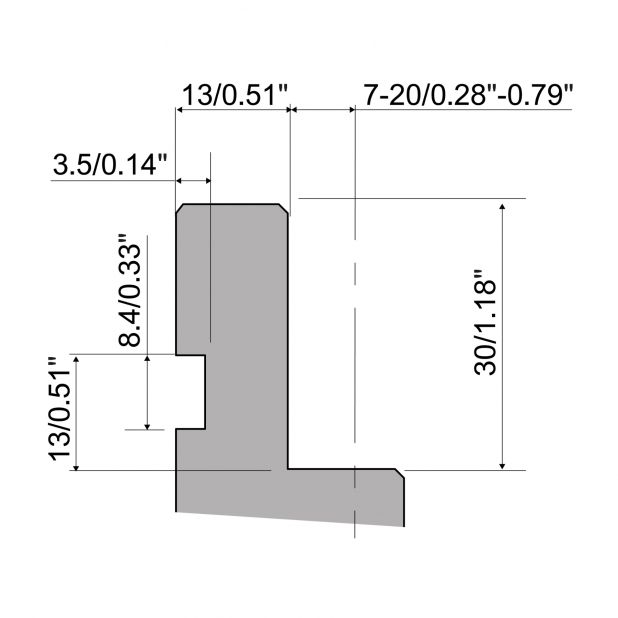

Clamping height=100mm.
Bending axis at 7mm.
Also available with H=150mm intermediate (13131-150-M), H=120mm bending axis 20mm (13135-M) and H=150mm bending axis 20mm.
DOUBLE ORIENTATION
Manual clamping for punches with ergonomic lever. Vertical tool change for standard European type punches and automatic alignment.
SETUP-TIME
on 3mt press brake (15 modules)
OPERATION | TRADITIONAL MODEL MANUAL WITH SCREWS | MODEL TEDA SPEED GRIP MANUAL (13131-M) |
---|---|---|
Screw loosening | 30 viti = 5″ total = 150″ |
15 moduli tramite leva = 2″ total = 30″ |
Unloading tool | Laterale = 25″ total = 100″ |
Frontale = 8″ total = 32″ |
Tool loading | Laterale = 25″ total = 100″ |
Laterale = 6″ total = 24″ |
Pre-screwing 30 screws | 4″ total = 120″ |
– |
Light pressing to house tools | 10″ total = 10″ |
– |
Screwing 30 screws | 3″ total = 90″ |
– |
Clamping 15 modules by ergonomic lever | – | 4″ total = 30″ |
TOTAL TIME | 570″ = 9′,30″ | 116″ = 1′,56″ |
