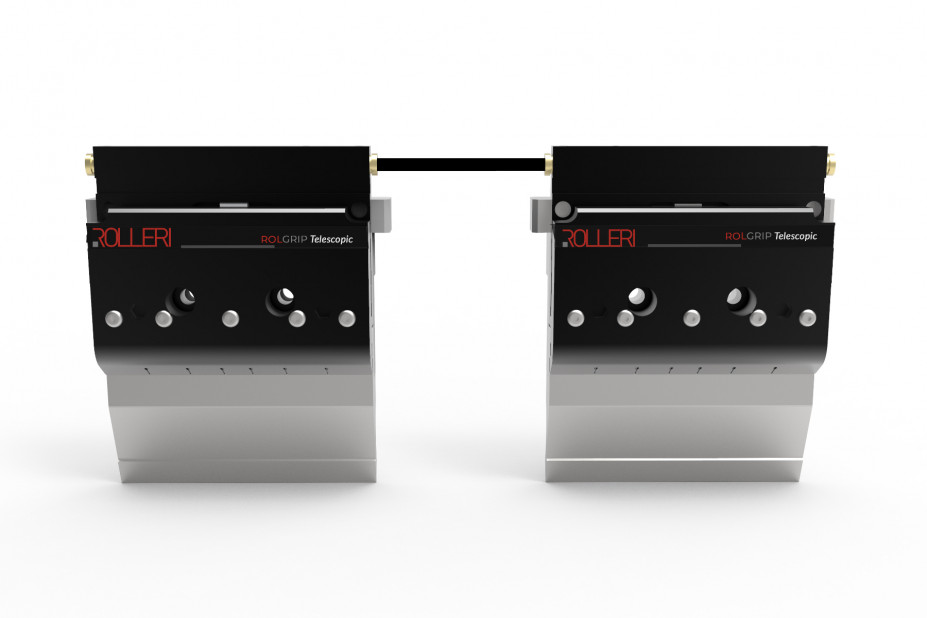

With the Rolgrip TELESCOPIC system, positioning and centering take place automatically while the punches are clamped.
The system is equipped with a telescopic tube which allows a large lateral movement of the modules.
- Description
- Features
- Attachments
Automatic pneumatic clamping system for upper tools. Compatible with all press brakes with Amada-Promecam type tang.

UPPER TOOLS
Automatic pneumatic clamping system for upper tools.

TECHNICAL INFORMATION
Clamping height=100mm.
Bending axis at 7mm.
Also available with 20mm axis and with different intermediate heights (H=120mm, H=150mm).

VERTICAL TOOL CHANGE
Vertical tool change of standard tool European type and automatic alignment.

SUPPLY
Air connection with stainless steel telescopic pipe (patented).

DOUBLE ORIENTATION
Possibility of mounting the tool reverse (manual clamping from operator side) with manual clamp 11008 (optional).
