With ROLGRIP, intermediates blocking tools are free from compressed air connections. A special system inside the clamp allows air to pass only when the clamp “recognises” an idoneous automatic module.
If the clamp has to block any other element (special tool, manual intermediate, etc.) there is no air emission, and clamp can be used as a standard manual clamp.
- Description
- Features
- Attachments
Pneumatic automatic clamping for upper tools. Compatible with all press brakes with Amada-Promecam type tang.

UPPER TOOLS
Pneumatic automatic clamping for upper tools.

FLEXIBILITY

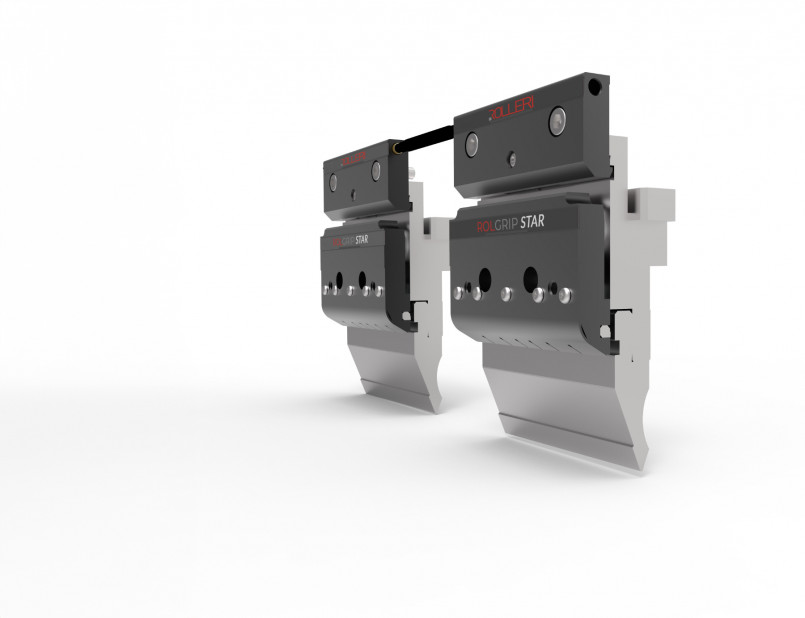

Upper clamp 13401-A-ST “STAR SYSTEM” (patented by Teda) electrical connection essential for ROL GRIP STAR SYSTEM, allows the removal of modules everywhere on clamping system, granting complete flexibility of machine tooling.

VERTICAL TOOL CHANGE
Vertical tool change of standard tool European type and automatic alignment.

TECNICAL INFORMATION
Clamping height=100mm.
Bending axis at 7mm.
Also available with 20mm axis and with different intermediate heights (H=120mm, H=150mm).

SUPPLY
Patented STAR SYSTEM electrical connection. No need of pipes in working area, and free and easy removal of modules everywhere on clamping system.

DOUBLE ORIENTATION
Possibility of mounting the tool reverse (manual clamping from operator side) with manual clamp 11008 (optional).
