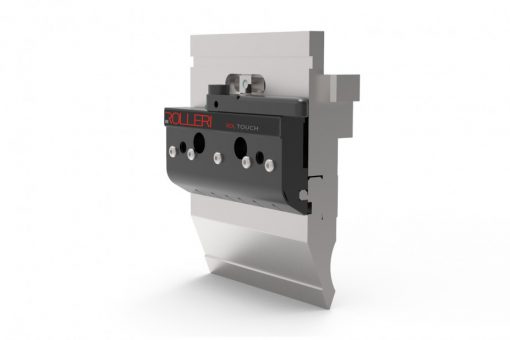

Thanks to ROL TOUCH clamp you can keep the intermediates on your press brake, and replace only front clamp: a fast-clamping system with a small investment.

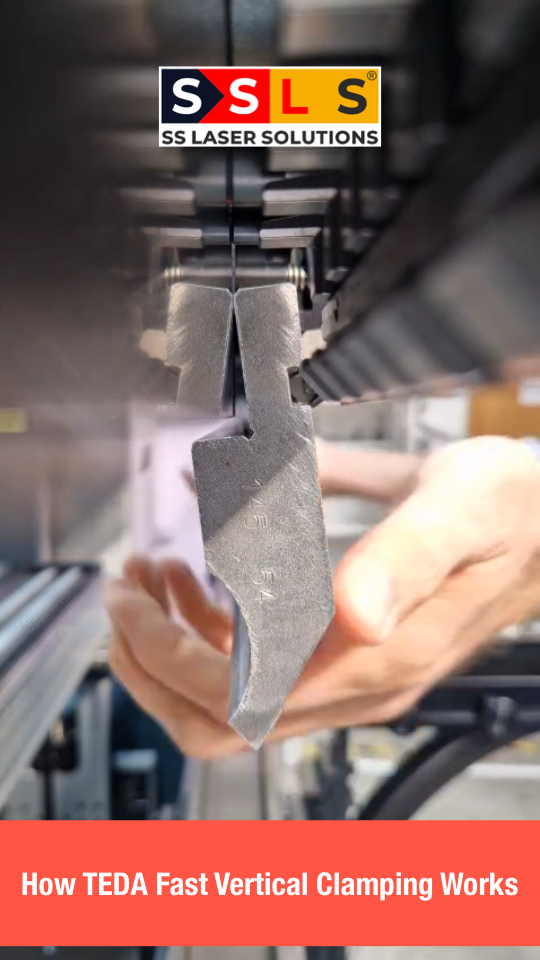

Vertical tool change for standard European type punches and automatic alignment.
- Description
- Features
- Attachments
Manual clamping for punches with ergonomic lever. Compatible with all press brakes with Amada-Promecam type tang.
Set-up time
| OPERATION | TRADITIONAL MODEL MANUAL WITH SCREWS | MODEL TEDA SPEED GRIP MANUAL (13131-M) |
|---|---|---|
| Screws loosening | 30 screws = 5″ total = 150″ |
15 modules by lever = 2″ total = 30″ |
| Tool extraction | Lateral = 25″ total = 100″ |
Frontale = 8″ total = 32″ |
| Tool loading | Lateral = 25″ total = 100″ |
Lateral = 6″ total = 24″ |
| Pre-screwing 30 screws | 4″ total = 120″ |
– |
| Light pressing to house tools | 10″ total = 10″ |
– |
| Screws tightening 30 screws | 3″ total = 90″ |
– |
| Clamping 15 modules by ergonomic screw | – | 4″ total = 30″ |
| TOTAL TIME | 570″ = 9′,30″ | 116″ = 1′,56″ |
