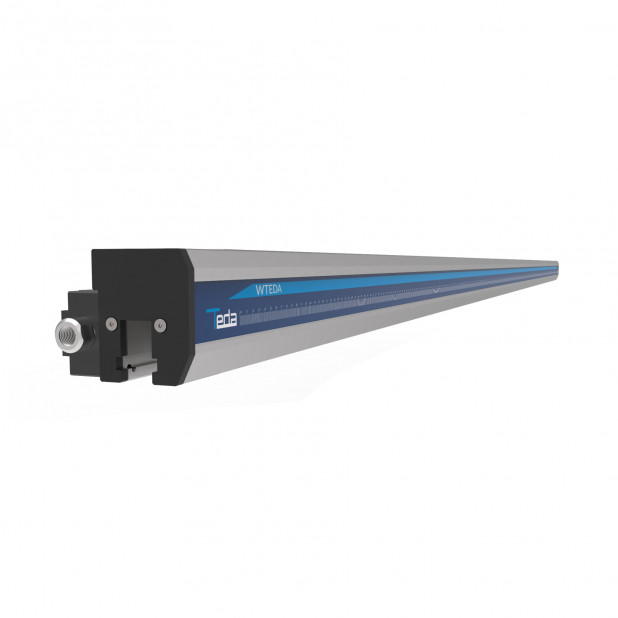

ROL TOUCHCLAMPING SYSTEMS > CLAMPING SYSTEMS > W-TEDAAir Grip Axial

Quick pneumatic upper system in hardened C45 for New Standard tools, length from 1100 to 6100 mm. Maximum load 1800 kN / m on the head and shoulder.
- Description
- Features
- Attachments
Quick pneumatic upper system in hardened C45 for New Standard tools, length from 1100 to 6100 mm. Maximum load 1800 kN / m on the head and shoulder.

UPPER TOOLS
The WT line clamping are New Standard tool fastening systems. It is also possible to transform a press brake with Promecam attachment into New Standard.

ALIGNMENT
All WT systems guarantee the automatic alignment of the punches with their return to the stop on the work surfaces: on the head or on the shoulder.

DUAL ORIENTATION
Possibility of fitting tools on the rear side of the clamping units by bracket mod. 11008 (manual clamping) not included in the supply
Models
CODE | LENGTH |
---|---|
WT 1020 | 1020 mm |
WT 1530 | 1530 mm |
WT 2040 | 2040 mm |
WT 2550 | 2550 mm |
WT 3060 | 3060 mm |
WT 4590 | 4590 mm |
WT 5100 | 5100 mm |
WT 5610 | 5610 mm |
WT 6120 | 6120 mm |
